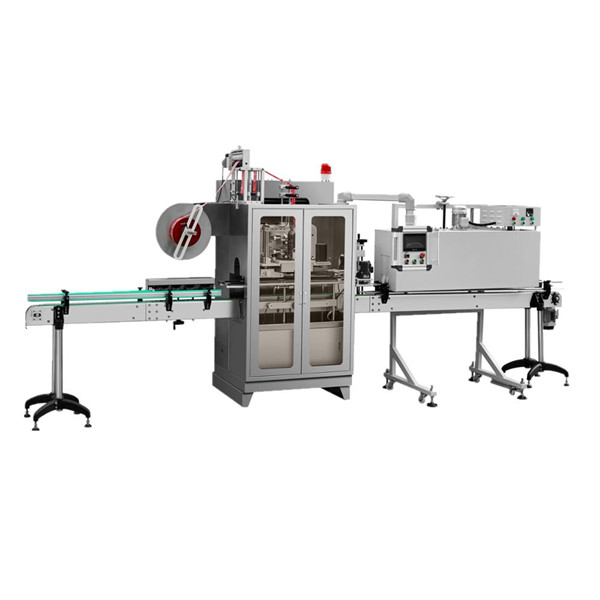

Water Bottle Double Sided Shrink Sleeve Labeling Machine

Detailed Product Description

Product Name:	Automatic Shrink Sleeve Labeling Machine	Output Speed:	400pcs/min
Applicable Length Of Label:	30mm~200mm	Bottle Type:	Round,Square,Flat,Curve
Applicable Paper Tube Internal Diameter:	5" - 10"free Adjustment	Label Materials:	PVC,PET,OPS

automatic shrink sleeve labeling machine for water bottle double side

Applications:

1. All-cover type stainless steel host machine:the whole machine is waterproof as well as rustproof.
2. Adjustable cutter head:unquely cyclotron cut-off,double sided cutting edge with a long service life.
3. Single postioning center guide pillar:a more stable for label delivery.
4. Synchronous bottle divider:a more stable transmission for bottle.
5. Bottom set of label brush:a more precision for casting label.
6. Label-controlling electric-eye shelf:unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
7. Push-button control cabinet:a more humanized operation.
8. Independent feeding material shelf:the position of the material shelf is optional at all.

Technical Parameter

Input Voltage: 3Φ380V/220VAC
Cap & Body sleeve Speed: 400bs/min
Size of host machine: 2440(L) X 1000(W) X 2050(H)
Bottle type: Round, Square, Flat, Curve
Label Length: 30mm-200mm (accept customized)
Label thickness: 0.03mm-0.13mm
Materials: PVC. PET. OPS
Core Inner Dia: 5”-10”(Free adjustment)
Core Outer Dia: 500mm-600mm
Weight: Roughly 650kg
Cutter Scope: 50-95mm (customized)

Our Services

Offer you professional labeling sulution according to your specific labeling requirements. Supply you high quality labeling machine after placing order. Try to make the delivery time as short to meet your needs. Provide you lifelong free technial support after you receiving our machine.

FAQ

1. What kind of labeling machine do you have?

Dear Customer, we have automatic labeling machine for round containers and flat surface.

And we can design the machine according to your specific labeling situation.

Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

2. What kind of bottles does your machine can sleeve?

We can supply multidirectional sleeve labeling

Applications:

variant bottle label, Beer bottle label, Cap sealing label, Full bottle label and Mineral water label. Bottle shape has Square bottle, Half-bottle and Clean products bottles.

3. What information should we supply to check the suitable model?

Pls send us picture of your container and label, as well as the container and label size.

Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)

Then, we'll let you check the suitable model.
