Wine Round Bottle Sticker Labelling Machine For Craft Beer , Distilled Spirits

Detailed Product Description

Type:	Wine Round Bottle Sticker Labelling Machine For Automatic Craft Beer ,Wine & Distilled Spirits	Advantage:	High Speed
Labeling Speed:	20-200pcs/min	Function:	Ahesive Sticker Labeling
Material:	Stainless Steel	Model:	Beer Bottle Labeling Machine
Bottle Type:	Automatic Round Bottle Labeler Jar	Label Accuracy:	+/- 1/32"
Size Of Machine:	2000(L)*1100(W)*1300(H)mm

Wine Round Bottle Sticker Labelling Machine For Automatic Craft beer ,Wine & distilled spirits

Application:

Wine Round Bottle Sticker Labelling Machine For Automatic Craft beer ,Wine & distilled spirits is suitable for all kinds regularround bottles, especially ideal for cylinder beer or wine.

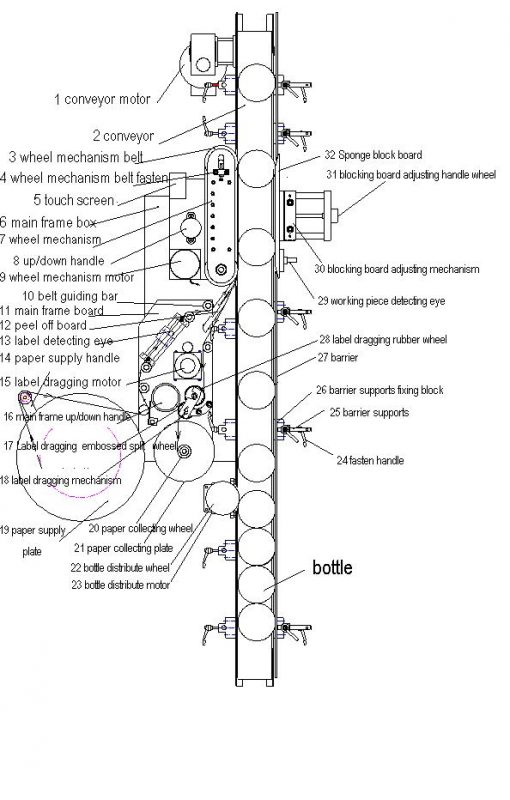

Schematic diadram:

NO.	part	NO.	part
01	Conveyor motor	20	Paper collecting wheel
02	conveyor	21	Paper collecting plate
03	Wheel belt	22	Bottle distribute wheel
04	Wheel belt fasten base	23	Bottle distribute motor
05	Touch screen	24	Fasten handle
06	Main frame box	25	Barrier supports
07	Wheel mechanism	26	Barrier supports fixing part
08	up/down adjusting handle wheel for wheel mechanism	27	Barrier
09	Wheel mechanism motor	28	Dragging label rubber wheel
10	Belt guiding bar	29	Working piece detect photoelectric eye
11	Main frame board	30	Block board adjusting mechanism
12	Peel off board	31	Block board adjust handle wheel
13	Label detect photoelectric eye	32	Sponge block board
14	Paper supply brake handle
15	Label dragging motor
16	Main frame up/down adjusting handle wheel
17	Label dragging embossed split wheel
18	Label dragging mechanism
19	Paper supplying plate

Technical Parameters:

Name : Wine Round Bottle Sticker Labelling Machine For Automatic Craft beer ,Wine & distilled spirits
Labeling Speed : 20-200pcs/min
Height of Object : 30-280mm
Thickness of Object : 30-120mm
Height of Label : 15-140mm
Length of Label : 25-300mm
Label Roller Inside Diameter : 76mm
Label Roller Outside Diameter : 380mm
Accuracy of Labeling : ±1mm
Power Supply : 220V 50/60HZ 3.5KW
Gas Consumption of Printer : 5Kg/m2(if add coding machine)
Size of Labeling Machine : 2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine : 120kg

Our Services	Offer you professional labeling sulution according to your specific labeling requirements.
	Supply you high quality labeling machine after placing order.
	Try to make the delivery time as short to meet your needs.
	Provide you lifelong free technial support after you receiving our machine.

FAQ

1. What kind of labeling machine do you have?

Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface.

Some model for one label and others for two labels or even more. And we can design the machine according to your specific labeling situation.

Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

2. Could we add coding machine to print date and lot No.?

Yes, you can chose to add coding machine to print the letters and No. you want.

It's hot stamp and can print at most three lines.

3. What information should we supply to check the suitable model?

Pls send us picture of your container and label, as well as the container and label size.

Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)

Then, we'll let you check the suitable model.
